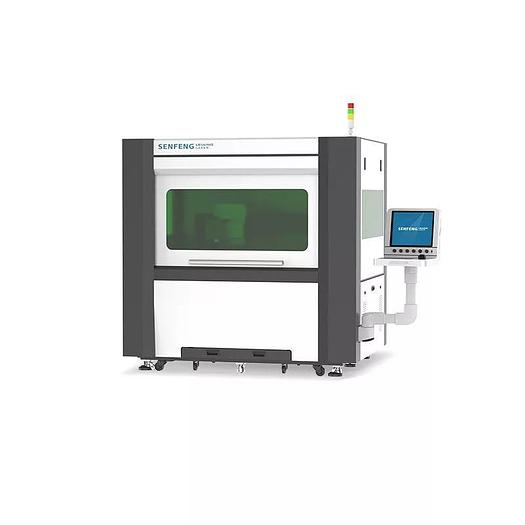

SFP1313-Laser High-Speed Microporous Machining Equipment
SFP1313-Laser High-Speed Microporous Machining Equipment
Contact us for price
New Hope, MN
orCall 763-710-5160
Description
SFP1313-Laser High-Speed Microporous Machining Equipment
INTRODUCTION
Laser high-speed micro-machining is one of the indispensable, and widely used laser methods in micro-holes processing. With the reduction of the thickness of target material, and the increase of hole matrix density, the traditional machining and galvanometer scanning cannot reach the expected speed and accuracy. Compared with the conventional galvanometer scanning device, high-speed polygon mirror scanning with nanosecond high repetition rate laser can effectively provide high-speed laser precision micro-hole arrays and solve the research projects.
TECHNICAL PARAMETERS
PROCESSING METHODS
Laser lattice scanning
Laser linear scanning
High-speed BMP bitmap processing
Laser drilling
Laser linear cutting
High density micro-hole array processing
laser beam grooving
ADVANTAGES OF LASER HIGH-SPEED MICRO-MACHINING EQUIPMENT
The scanning speed of a polygon mirror scanner can reach 2000′ /s, which is tenths of times that of the galvanometer, ultra-high speed for precise microporous manufacturing.
The high-speed laser micro-processing equipment uses marble surface plate and marble beams to improve the stability and shock resistance of the bed.
High-speed laser micro-machining has the advantage of wide application important research value. Different processing needs can be met by optimizing laser processing technology.
APPLICATION INDUSTRIES
Laser high-speed micro-machining equipment is widely applied to medical industry, aerospace, machinery manufacturing, semiconductor industry, decorative advertising, friction reduction lubrications, sound absorption filtration and cutting-edge research.
Specifications
Condition | New |
Machine size | 82.2″ x 71.6″ x 78.7″ |
Workbench size | 15.74″ x 15.74″ |
Laser power(w) | 500 |
Laser wavelength(nm) | 1,064 |
Laser pulse width(ns) | 30/60/120/240 |
Laser frequency(khz) | 2000/1000/500/500 |
Diameter of focused spot(μm) | ≤40 |
Effective focal length | 16.53″ |
Scanning range | 11.8″ x 11.8″ |
Scanning speed | ≤2000’/s |
Scanning line frequency(hz) | 1,600 |
Scanning repeat positioning accuracy(μm) | ±5μm |
Processing methods | Linear mode, dot matrix mode, bmp mode |
Positioning method | Polygon mirror scanner is matched with mechanical shaft |
